Wire Diameter 5-12mm Pneumatic Welding Rebar Reinforcement Welded Wire Mesh Machine
Rebar Reinforcement Welded Wire Mesh Machine Introduction:
The rebar reinforcement welded wire mesh machine is mainly used to produce concrete reinforcing mesh panel. The machine can make width of mesh from 1000mm to 3300mm. The machine can weld wire diameter max 12+12mm rebar. The welding power from air cylinder. The welding pressure is very big and strong. Now many clients are interested in penumatic type rebar reinforcement welded wire mesh machine. Easy to operate and the machine is CNC operation.Save labor cost. Only need two workers to operate. The suitable material for rebar reinforcement welded wire mesh machine: deformed bar, steel bar, round bar,galvanized wire.
Rebar Reinforcement Welded Wire Mesh Machine Features:
1. The rebar reinforcement welded wire mesh machine adopt panasonic PLC. Very easy to operate and the machine has control cabinet and operation desk. You could set the parameters by touch screen. Any parameters can be made.The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.
2. The line wire and cross wire both pre-cut by rebar straightening cutting machine. The line wire is feeding to the welding position by feeding car. The cross wire is feeding by hopper. which is controlled by the stepping motor. The cross wire hopper can load 1.5tons rebar. Save time and save labor cost.
3. We adopt world famous air cylinder brand to make sure the machine quality. Have enough welding pressure to weld rebar firmed.
4. Mesh pulling mechanism: Mitsubishi servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.
5. Water-cooled welding electrodes and a new type of special transformer for water-cooled welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.
6. Low-voltage electrical appliances are made of Schneider, Tianzheng, Mingwei and other well-known brands to ensure the efficient and stable operation of the equipment.
7. The reinforcing mesh welding machine will stop working automatically if there is no cross wires in hopper device.
Rebar Reinforcement Welded Wire Mesh Machine Technical Parameters:
| Model | DX-GWC-2500A | DX-GWC-3000A | DX-GWC-3300A |
| Width of mesh | 2500mm | 3000mm | 3300mm |
| Line wire space | 100-300mm(adjustable) | 100-300mm(adjustable) | 100-300mm(adjustable) |
| Cross wire space | 100-300mm(adjustable) | 100-300mm(adjustable) | 100-300mm(adjustable) |
| Wire diameter | 5-12mm | 5-12mm | 5-12mm |
| Welding electrodes | 24PCS | 30PCS | 32PCS |
| Welding transformer | 125KVA*12PCS | 125KVA*15PCS | 125KVA*16PCS |
| Welding press type | Pneumatic | Pneumatic | Pneumatic |
| Industrial voltage | 220V/380V/415V/440V | 220V/380V/415V/440V | 220V/380V/415V/440V |
| Welding way | Thyristor synchronous control | Thyristor synchronous control | Thyristor synchtonous control |
| Line wire type | Pre-cut | Pre-cut | Pre-cut |
| Cross wire type | pre-cut | Pre-cut | Pre-cut |
| Welding speed | 40-65 times per min | 40-65 times per min | 40-65 times per min |
| Overall dimension | 40m*4.2m*2.3m | 40m*4.7m*2.3m | 40m*5.2m*2.3m |
| Total weight | 11T | 13T | 15T |
| Labor required | 2 workers | 2 workers | 2 workers |
Rebar Reinforcement Welded Wire Mesh Machine Applications:
Rebar welded steel mesh is mainly used to make precast reinforced concrete components, and has been gradually developed, more used in cast-in-place concrete structures such as floor, roof, wall, ground, road, bridge deck and airstrip.
Rebar Reinforcement Welded Wire Mesh Machine Packing:

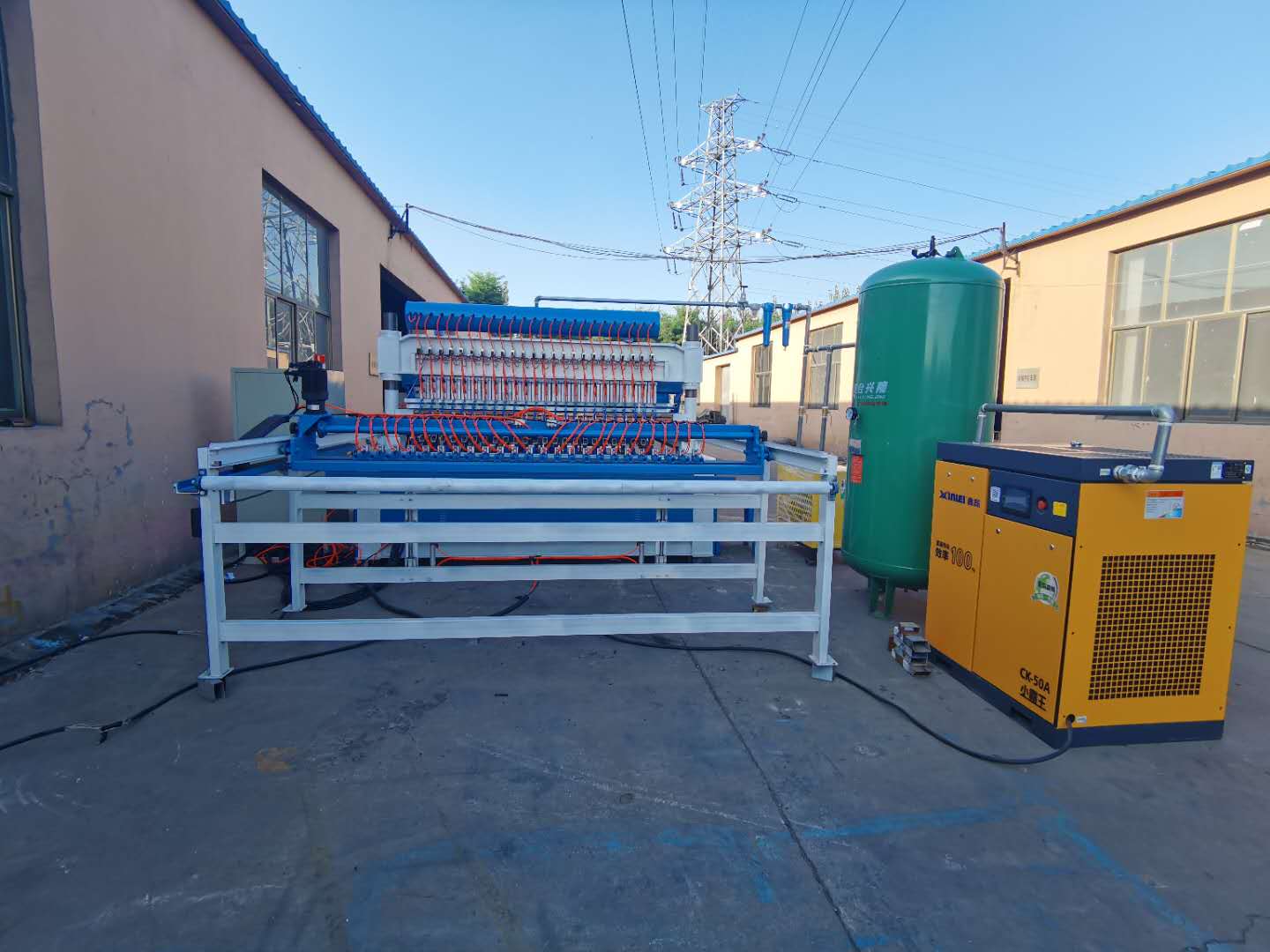

Rebar Reinforcement Welded Wire Mesh Machine photos:
